Prolight LED

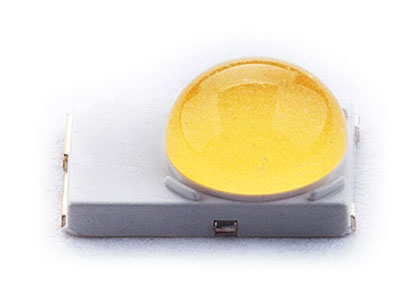

3045 Series

3045 is one of our smallest high power LED footprint available. The package delivers the efficacy, color quality, light output required in today's lighting applications. Furthermore, this series has passed LM-80 long-term testing data over 7,000 hrs, a TM-21 Reported Lifetime of greater than 42,000 hrs.

Applications


Characteristic








● 100% footprint compatible with Philips Lumileds Rebel


● Best moisture sensitivity level - JEDEC Level 1


● RoHS compliant


  • Parameter

Part No.

Color

CCT/λd(nm)

CRI

Test Current(mA)

Vf(V)

Min.
Lumens

2θ½
 [°]

Datasheets

   PR2N-3LWE-SD

White

4100~10000K

74

350

3.1

130

130



   PR2N-3LWE-R8

White

4100~10000K

84

350

3.1

130

130



   PR2N-3LVE-R8

Warm White

2700~4100K

80

350

3.1

120

130



   PR2N-3LWE-BSD

White

5000-10000K

70

350

3.1

130

130



   PR2N-3LRE-SD

Red

613.5~631

N/A

350

2.2

50

130



   PR2N-3LAE-SD

Amber

587~597

N/A

350

2.2

50

130



   R2N-3LGE-SD

Green

515~535

N/A

350

3.3

80

130



   PR2N-3LBE-SD

Blue

455~475

N/A

350

3.1

23.5

130



   PR2N-3LPE-ASD

PC Amber

587-589.5nm

N/A

350

3.1

100

130
