LED Modules

Flood Light Module

AC HV Light Engine series are driven directly by AC line voltage, No need the external driver, 4KV surge protection on board, Passed the certification of CE,UL etc.

Main applications




Features




Flood light; Shot light; Tunnel lamp





● Constant power 190-285V

● High luminance LED Cree/Philips/Samsung/Prolight

● Up to 110-120 lm/W for the module

●2KV/4KV/6KV surge protection on board

● PF≧0.98
● Low THD,15%THD
● Long life time more than 50,000hrs
● CE, RoHS approval



  • Parameter
<
Part No. LED CCT(K) Power(W) CRI Typ.PF Vf(V) Luminous Efficiency
(lm/W)
2θ½[°]

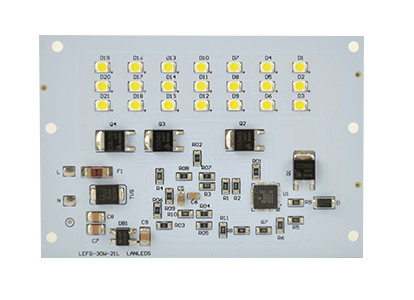

LEFG-30W-21L-E2 3030 3000~10000K 30 80 0.98 AC220V 110 130

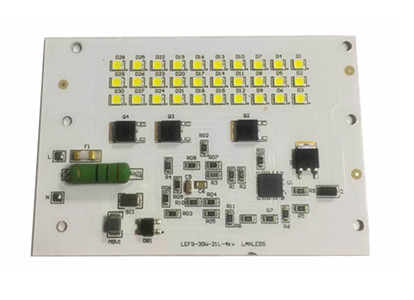

LEFG-30W-30L-4KV 3030 3000~10000K 30 80 0.98 AC220V 110 130

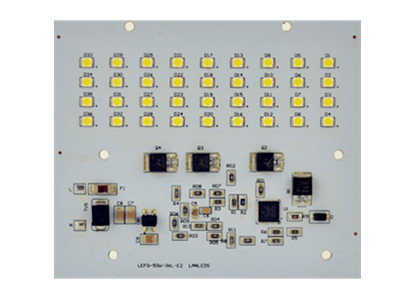

LEFG-50W-36L-E2 3030 3000~10000K 50 80 0.98 AC220V 110 130

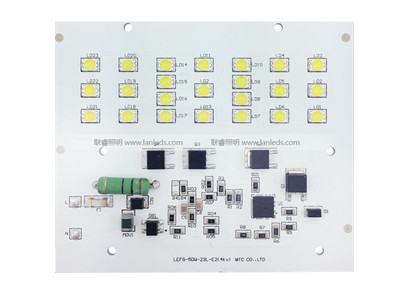

LEFG-50W-21L-4KV 4050 3000~10000K 50 70 0.98 AC220V 115 130

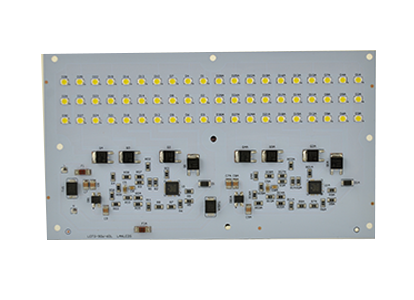

LEFG-90W-60L-E2 3030 3000~10000K 90 80 0.98 AC220V 110 130

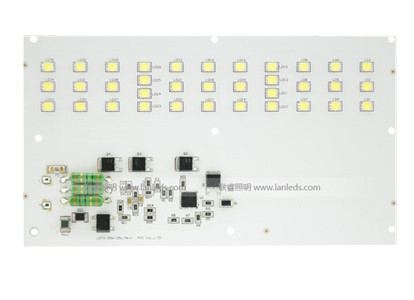

LEFG-90W-35L-4KV 4050 3000~10000K 90 70 0.98 AC220V 115 130
