LED Modules

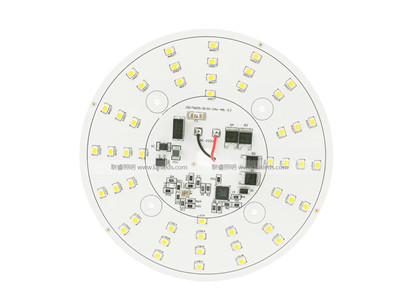

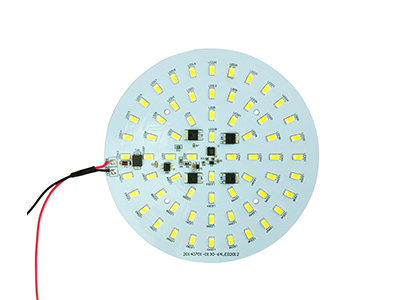

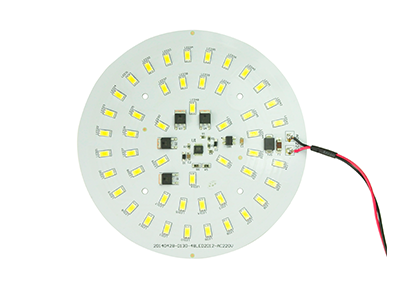

Downlight Module

LED downlight luminous efficiency is higher than ordinary lamps, it is the main force of energy saving lighting industry. In addition to high efficiency, long life, energy saving, AC HV downlights without power supply modules, make the fixtures more light and slim, in particular to provide a new solution for space-constrained lamps.

Main applications




▌Features



Down Light; Industrial Light; Explosion-proof light;

Big size LED bulbs


● Constant power 190-285V

● High luminance LED Cree/Philips/Samsung/Prolight

● Up to 110-120 lm/W for the module

● Long lifespan more than 50,000hrs

●2KV/4KV/6KV surge protection on board

● PF≧0.98

● Easy to assemble, easy to replace.



  • Parameter
<
Part No. LED CCT(K) PowerW CRI Typ.PF Vf(V) Luminous Efficiency
(lm/W)
2θ½[°]
LETD-24W-48L-2KV 3030 3000~10000K 24 80 0.98 AC220V 100 130
LETD-24W-48L-E2 3030 3000~10000K 24 80 0.98 AC220V 100 130
LETD-32W-64L-E2 3030 3000~10000K 32 80 0.98 AC220V 100 130
