LED Modules

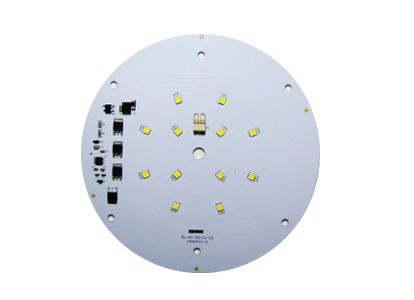

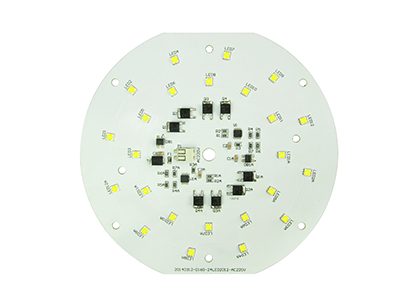

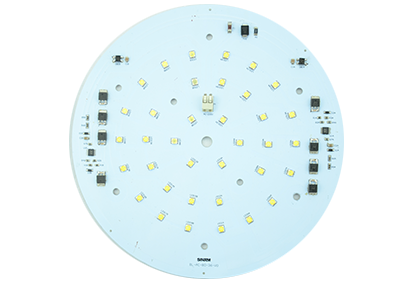

Explosion-proof Module

LED explosion proof lights belong to a special electrical equipment, which use low heat dissipation of LED to achieve safety explosion-proof grade, and long lifetime of led, making the LED remains constant brightness at the fully charged and discharged ; cooling devices on the fixtures, can achieve effective cooling,ensure stability in use of coal, petroleum, railway, flood lighting and other industries.

Features


● Constant power 190-285V

● High luminance LED Cree/Philips/Samsung/Prolight

● Up to 110-120 lm/W for the module

● Long lifespan more than 50,000hrs

●2KV/4KV/6KV surge protection on board

● PF≧0.98

● Easy to assemble, easy to replace.




  • Parameter
<
Part No. LED CCT(K) PowerW CRI Typ.PF Vf(V) Luminous Efficiency
(lm/W)
2θ½[°]
LEEP-30W-12L-E2 4050 3000~10000K 30 70 0.98 AC220V 117 130
LEEP-50W-24L-E2 4050 3000~10000K 50 70 0.98 AC220V 115 130
LEEP-60W-28L-E2 4050 3000~10000K 60 70 0.98 AC220V 115 130
LEEP-80W-36L-E2 4050 3000~10000K 80 70 0.98 AC220V 115 130
