LED Modules

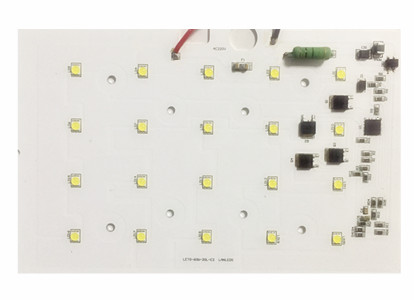

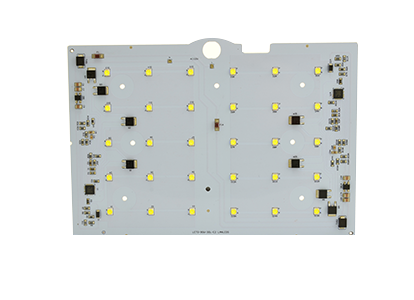

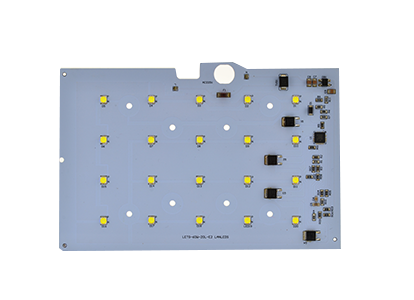

Floodlight Module

AC HV Light Engine series are driven directly by AC line voltage, No need the external driver, 4KV surge protection on board, Passed the certification of CE,UL etc.

Main applications




Features




Flood light;Shot light; Tunnel lamp





● Constant power 190-285V

● High luminance LED Cree/Philips/Samsung/Prolight

● Up to 110-120 lm/W for the module

●2KV/4KV/6KV surge protection on board

● PF≧0.98
● Low THD,15%THD
● Long life time more than 50,000hrs
● CE, RoHS approval

  • Parameter
<
Part No. LED CCT(K) Power(W) CRI Typ.PF Vf(V) Luminous Efficiency
(lm/W)
2θ½[°]
LETG-60W-20L-CYT 4050 3000~10000K 60 70 0.98 AC220V 110 130
LETG-60W-20L-E2 4050 3000~10000K 60 70 0.98 AC220V 110 130
LETG-60W-20L-4KV 4050 3000~10000K 60 70 0.98 AC220V 110 130
LETG-90W-30L-E2 4050 3000~10000K 90 70 0.98 AC220V 110 130
