LED Modules

Linear Series

  • LED Linear
  • Backlight Strip
  • Aircraft
  • Fireplace Lamp

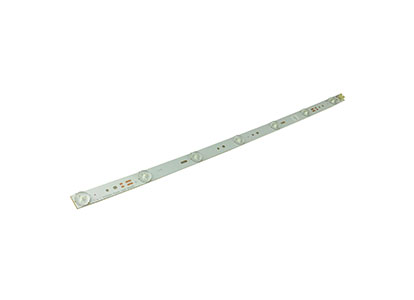

LED Linear Series Module

● Using high power SMD3535 LED, uniformity of luminance, high brightness,

low power consumption, long life, stable performance

● High-quality aluminum PCB, good thermal performance

● Adjust the length according to the actual demand for a wide range

● Choose a different color RGB LED


Main Applications
T5/T8 tube;  Grill lamps; Sidewalk design;  Staircase lighting;  Cabinet lighting

Part No.

Color

CCT(K)

Power (W)

CRI

If(mA)

Vf(V)

Typ.Flux(lm)

2θ½[°]

Datasheets

LMXT-6W-6L

White

2700-7000K

6

80

350

16-21

600

130



LMXT-18W-18L

White

2700-7000K

18

80

1050

16-21

1800

130

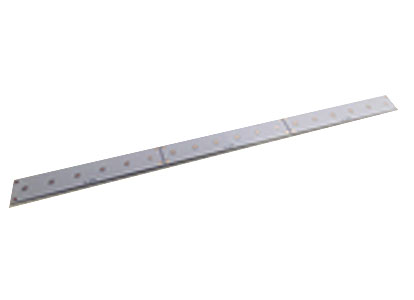

LED Backlight Strip

● Using high brightness SMD2835 LED, uniformity of luminance,  long lifetime

● Simple installation

● Energy saving, high efficiency


Main Applications
LCD TV;  laptop; LCD monitor;  LED tube

Part No.

Color

CCT(K)

Power (W)

CRI

If(mA)

Vf(V)

Typ.Flux(lm)

2θ½[°]

Datasheets

LMBG-7W-7L

White

2700-10000K

7W

70

350

20.3-23.8V

700

130

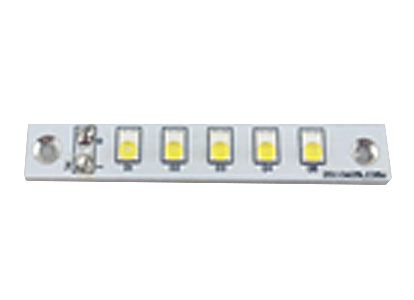

LED Aircraft Obstruction Beacon Module

Using high power SMD3045 LED, uniformity of luminance,

high brightness, low power consumption, long lifetime,

stable performance




Part No.

Color

CCT(K)

Power (W)

CRI

If(mA)

Vf(V)

Typ.Flux(lm)

2θ½[°]

Datasheets

LMZA-5W-5L

White

2700-10000K

5W

70

350

14-17V

500

130

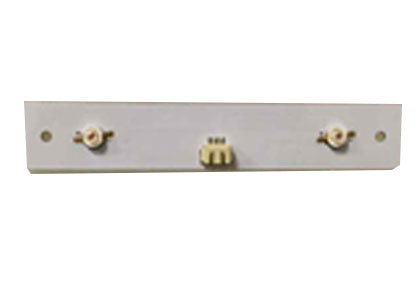

LED Fireplace Lamp Module

Use K2 amber LED, simulation flame color, energy saving and environmental protection,

ong lifetime, the effect is obvious


Main Applications
Continental fireplace; Simulation flame lights;  Stage effects;  Entertainment decoration

Part No.

Color

CCT(K)

Power(W)

CRI

If(mA)

Vf(V)

Typ.Flux(lm)

2θ½[°]

Datasheets

LMBL-2W-2L

Amber

587-597nm

2



350

4V



130
