LED Modules

High Bay Module

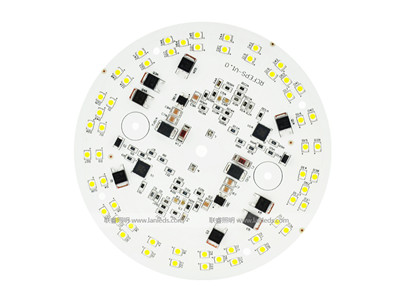

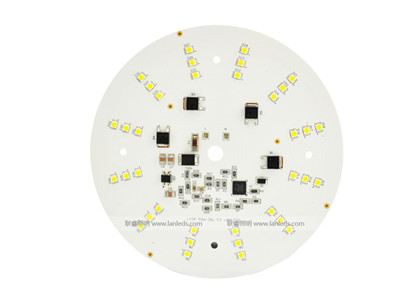

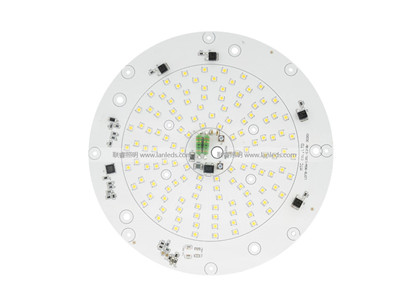

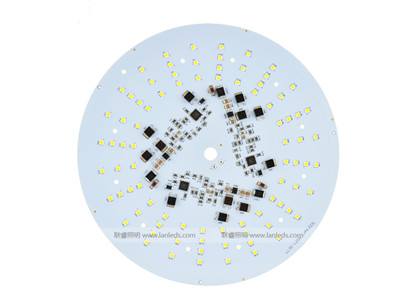

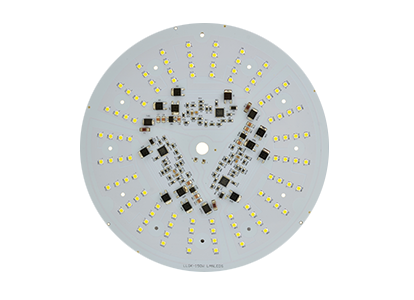

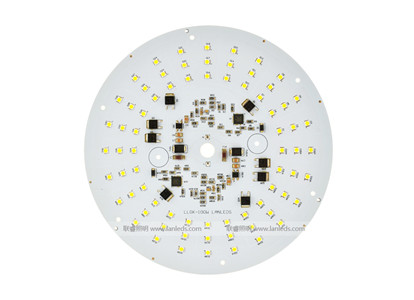

AC HV Light Engine series are driven directly by AC line voltage, No need the external driver, 4KV surge protection on board, Passed the certification of CE,UL etc.

▌Main applications




▌Features



Industrial light; Explosion-proof lamp;

Big led bulb; High bay; Low bay



● Constant power 190-285V

● High luminance LED Cree/Philips/Samsung/Prolight

● Up to 110-120 lm/W for the module

●2KV/4KV/6KV surge protection on board

● PF≧0.98
● Low THD,15%THD
● Long life time more than 50,000hrs
● CE, RoHS approval



  • Parameter
<
Part No. LED CCT(K) Power(W) CRI Typ.PF Vf(V) Luminous Efficiency
(lm/W)
2θ½[°]
LEGK-50W-36L-E2 3030 3000~10000K 50 80 0.98 AC220V 110 130
LEGK-80W-54L-E2 3030 3000~10000K 80 80 0.98 AC220V 100 130
LEGK-90W-126L-4KV 3030 3000~10000K 90 80 0.98 AC220V 117 130
LEGK-100W-72L-E2 3030 3000~10000K 100 80 0.98 AC220V 110 130
LEGK-120W-72L-E2 3030 3000~10000K 120 80 0.98 AC220V 100 130
LEGK-150W-96L-E2 3030 3000~10000K 150 80 0.98 AC220V 100 130
