Gaggione Optics
Hybrid reflector

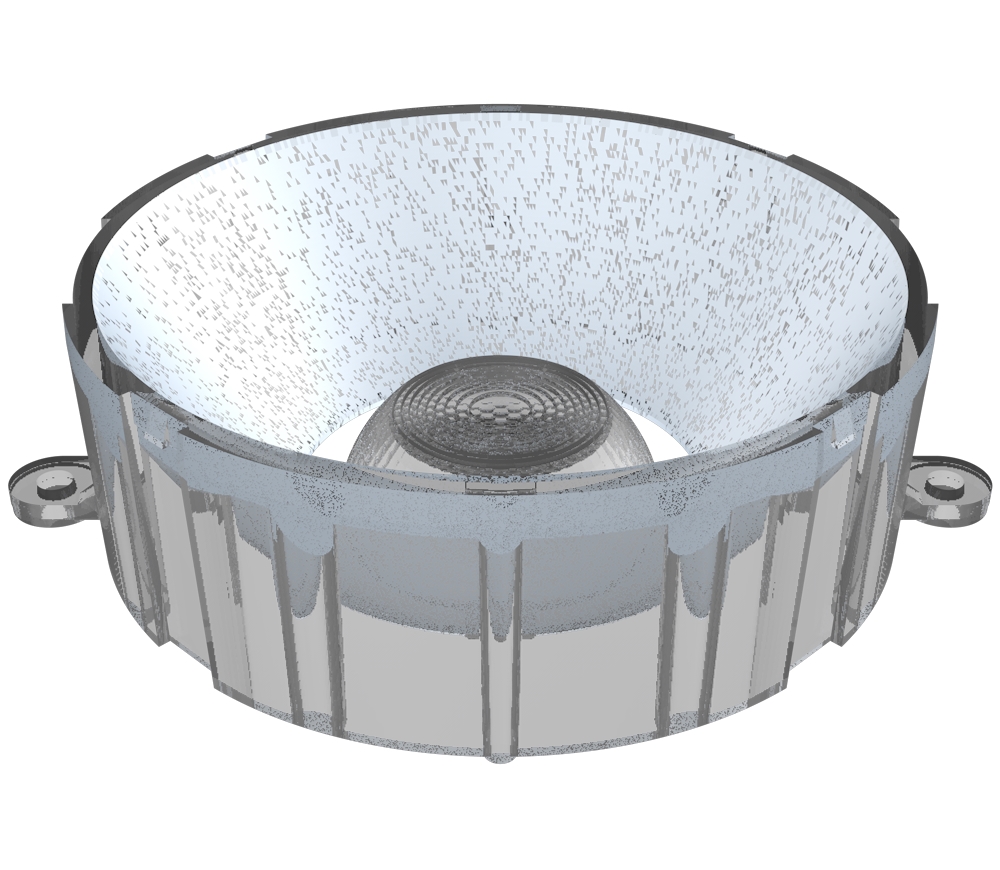

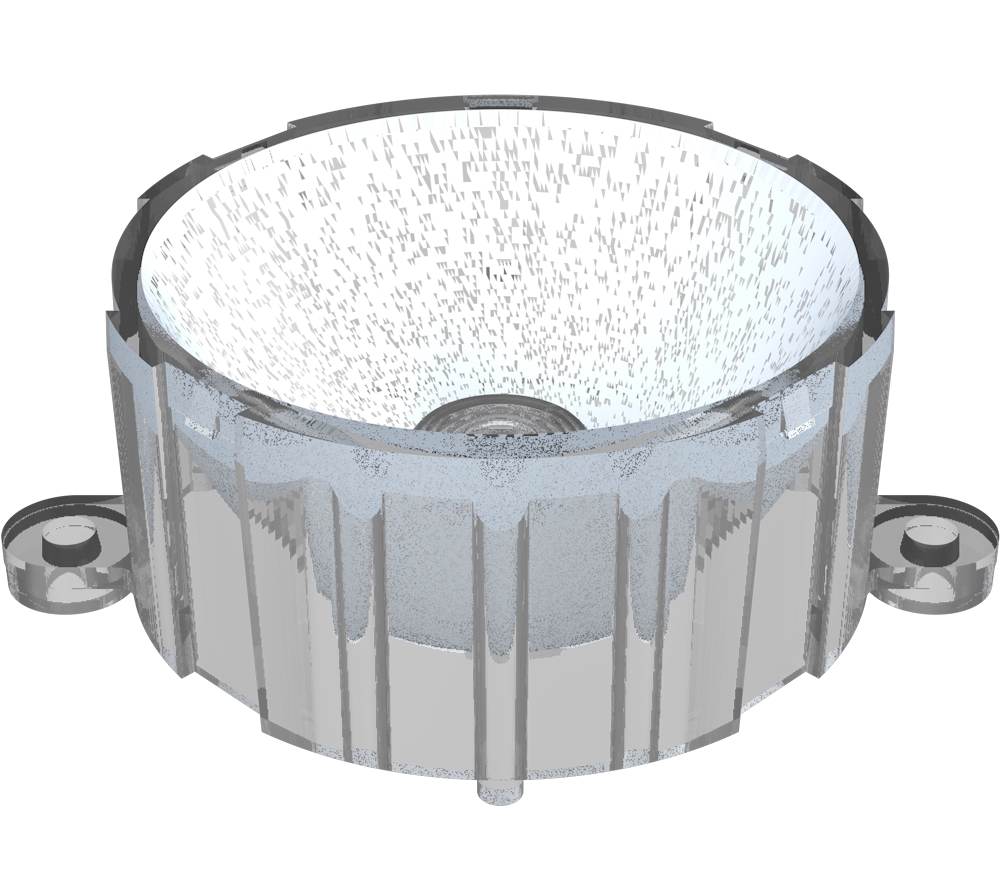

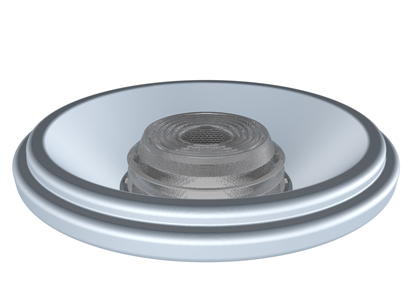

Our hybrid reflector is the addition of a Fresnel lens and a reflector itself.
Some different windows can be clipped on the reflector to move from a Narrow beam (15°) to Medium (30°) or a Large beam angle (60°).
From one mechanical design, 3 different solutions are available to cover any needs
|
Optics Size
|
Part No.
|
Beam type
|
Material
|
Holder
|
Suitable Light source
|
|
|
Ø 45mm
|
LLR01N
|
Narrow, Medium, Wide
|
PC
|
NO
|
COB
|
|
|
Ø 70mm
|
LLR05N
|
Narrow, Medium, Wide
|
PC
|
NO
|
COB
|
|
|
Ø111mm
|
LLR07M
|
Medium
|
Aluminum & PC
|
NO
|
COB
|
|
|
Ø111mm
|
LLR27M
|
Medium
|
Aluminum & PC
|
NO
|
COB
|
|
